Single Speed

Configure YOUR MODEL

Inspiration

  • 1

    STANDARD FRAME

    • 1

      SILVER GREY  0

    • 1

      TENERIFE STONE  500

    • 1

      COSMIC BLACK  500

Starting From  4,095
CONTACT A DEALER

X35 SINGLE SPEED

X35 SINGLE SPEED features

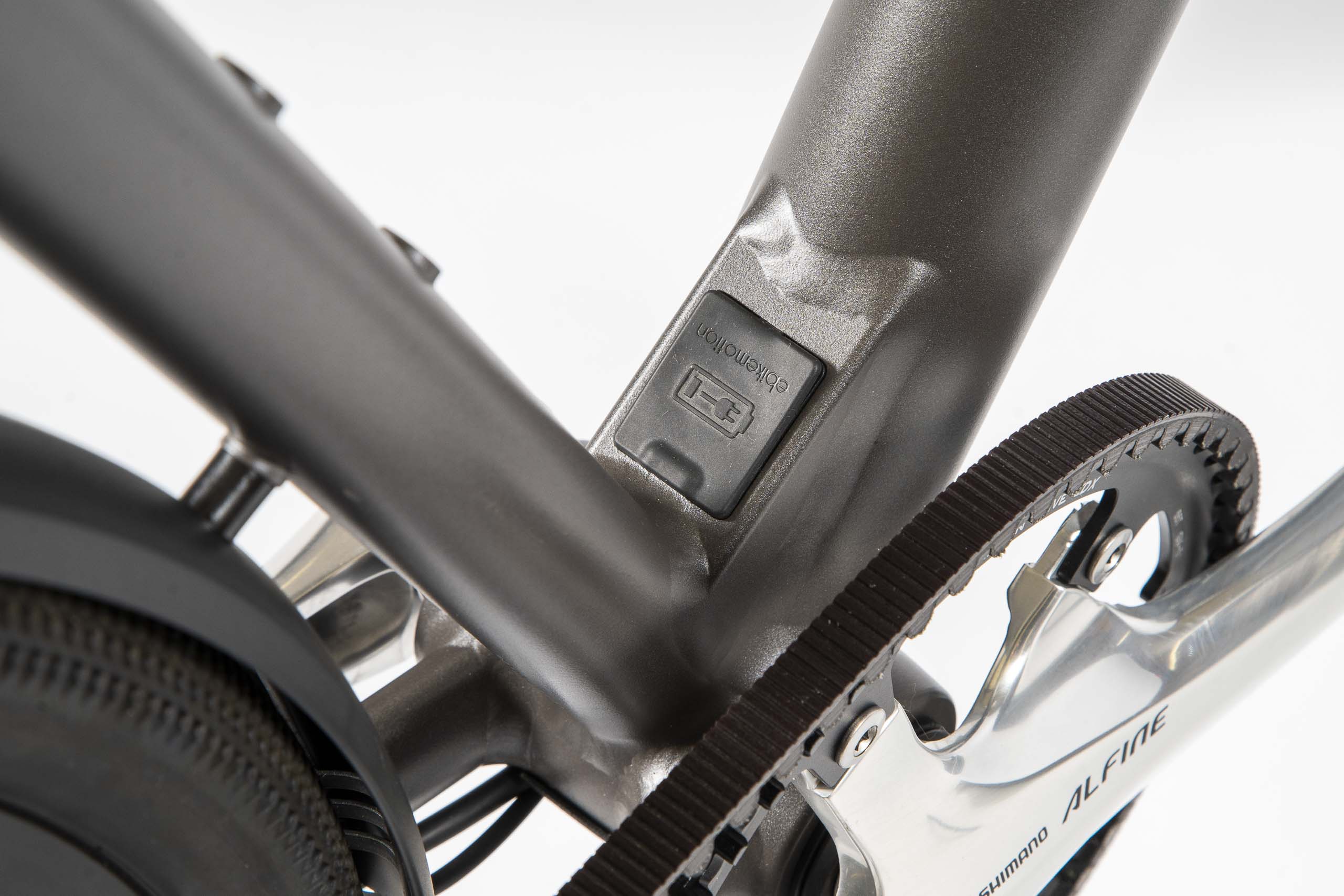

Intergrated battery and charing connector, concealed within the main tube and bridge of the frame.

Shimano CDN 118T 55-20 Alfine Crankset with Gates Carbon Drive™

Discreet threaded inserts for Water Bottle, Fenders and Rear Rack Mounts.

Supernova E3 Tail Light, controlled by the frame mounted iWOC ONE control system.

Powerful Mahle X35 M1 Hub Motor for consistent power, and PAS sensor integrated in the CNC milled dropout to detect pedalling by freewheel rotation.

Using only carefully selected components, every single wheel is hand-built by our master wheel builders.

Supernova V521s Front Light, controlled by the frame mounted iWOC ONE control system.

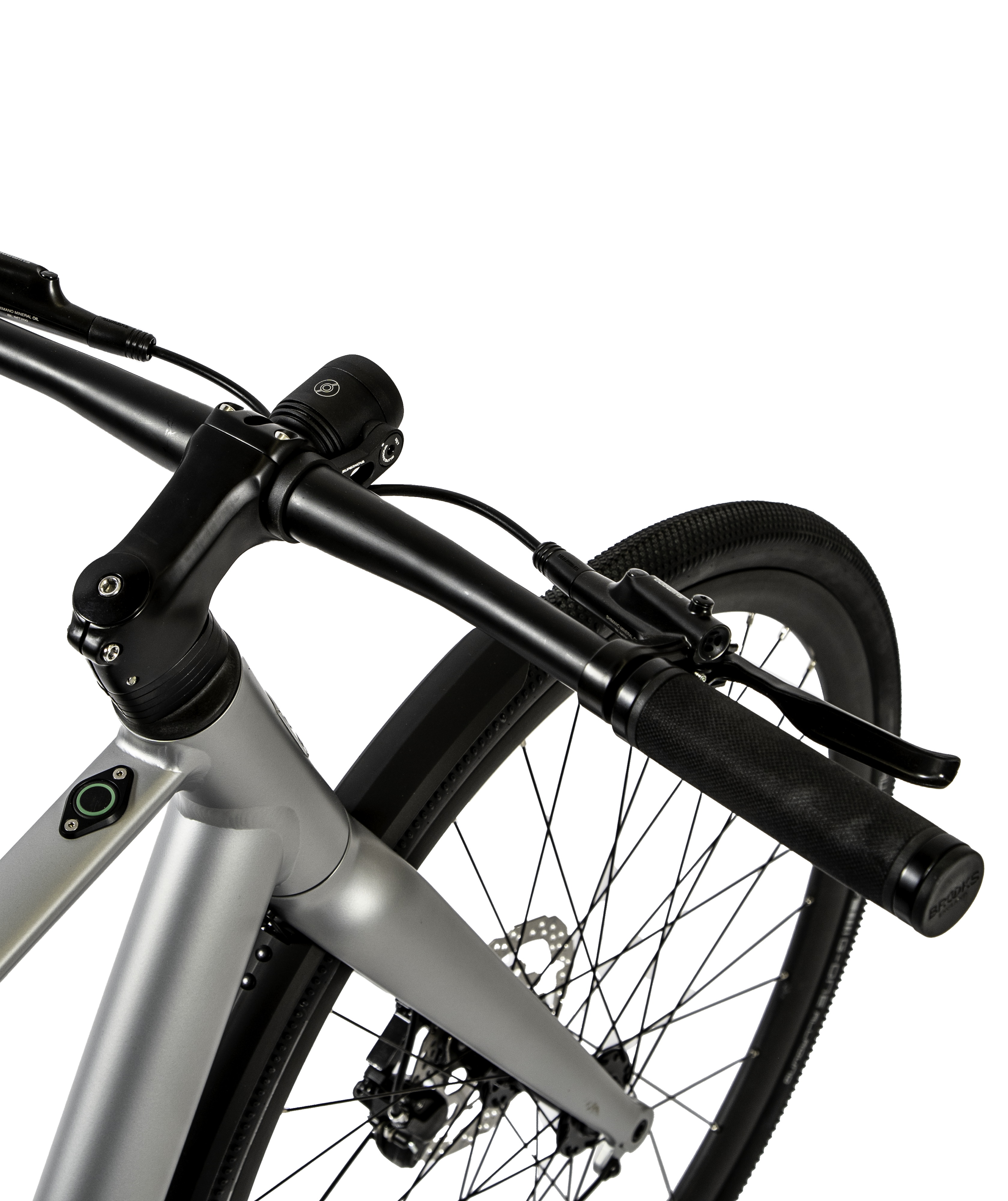

Brooks Slender Rubber grips for that added comfort.

Sweptback and tapered headtube for an increased stiffness, cornering precision and stability..

The X35 Smart system Bluetooth control unit offers Assistance level selection, Battery level indication, light control and gyroscopic and movement senescing.

ONE OF THE MOST VERSATILE E-BIKES AVAILABLE

At only 13.5kg, the X35 single speed electric bike is an excellent option for an inner city commuter or touring bike.

The X35 Mahle rear hub motor offers 40Nm of torque, while the battery gives you an assisted range up to 80km. Coupled with the Gates Carbon Drive belt, this ebike offers a clean and almost silent ride.

mahle e-bike system rear-hub motor

With a simple press of the IWOC® ONE integrated controller, riders not only control the e bikes power assistance level, but can also activate Bluetooth connectivity and the integrated front and rear Super-Nova light system.

accessories to enhance your ride

Our X35 range of electric bikes offers a number of compatible accessories, including the Mahle X35 Range Extender, PulsarONE Display, and Tublous Fly Rack.

Gallery

Technical Data
Frame

6061 Aluminium – T6 Heat Treated
CNC Parts
Custom Shaped Tubes
Internal Hose Routing
Handcrafted TIG Double Smooth Welding
Polished by Hand

Fork

Hydroformed Aluminium
Aluminium 1.5′ Tapered Steerer Tube
Internal Hose Routing
15mm Thru Axle
Fender and Light Mounts

Fork (optional)

Monocoque Full Carbon Fiber
Carbon 1.5′ Tapered Steerer Tube
Internal Hose Routing
15mm Thru Axle
Fender and Light Mounts

Drivetrain

Gates Carbon Drive™ CDN
Optional – Gates Carbon Drive™ CDX
118T Belt | 55T Front sprocket | 20T Rear sprocket

Brakes

Shimano Alfine Hydraulic Brakes – Polished Silver
160mm Shimano Front Rotor | 160mm Shimano Rear Rotor

Crankset

Gates CDN S150 – 175mm
Carbon Fiber Reinforced Composite Sprocket
Optional – Shimano Alfine Hollowtech
Gates Carbon Drive™ CDX Sprocket

Pedals

CNC Aluminium
Silver Anodized

Handlebar

Desiknio Classic Polished Aluminium

Seatpost

Desiknio Classic Polished Aluminium

Grips

Brooks Slender Genuine Leather

Saddle

Brooks B15 Swallow Genuine Leather
Optional – Brooks B17 Imperial / Imperial S

Weight

13,3 Kg / 14,1 Kg (with fenders, rack and lights)

Motor type

MAHLE ebikemotion® M1 Hub Motor
Geared and Freewheel

MAHLE ebikemotion® M1 Hub Motor Geared and Freewheel

250 W

Battery type

MAHLE ebikemotion® Inner Battery
Panasonic 18650GA – 10S/2P
CAN BUS

Battery capacity

250 Wh
*up to 500Wh with the optional Water Bottle Battery
7 Ah
*up to 14Ah

Battery voltage

36 V

Battery charging time

2 – 3 hours

Minimum range (high power / hilly terrain)

< 50 Km

Maximum Range (low power / flat terrain)

> 100 Km

Maximum speed (assisted power)

25 Km/h

Size Options
L Size Min Max
Recommended height
*This information is just a basic guidance.
180 cm 195 cm
Saddle height (from bottom bracket) 615 mm 800 mm
Toptube height 810 mm -
Handlebar width - 660 mm
M SIZE MIN MAX
Recommended height
*This information is just a basic guidance.
165 cm 185 cm
Saddle height (from bottom bracket) 595 mm 780 mm
Handlebar distance (from saddle) 640 mm (70 mm stem) 660 mm (90 mm stem)
Toptube height 790 mm -
Handlebar width - 660 mm
C SIZE MIN MAX
Recommended height *This information is just a basic guidance. 155 cm 175 cm
Saddle height (from bottom bracket) 565 mm 750 mm
Handlebar distance (from saddle) - 615 mm (70 mm stem)
Toptube height 620 mm -
Handlebar width - 660 mm
